Reachability Analysis with Sonatype for Azure DevOps

You can configure Sonatype for Azure DevOps to perform Reachability Analysis, which can detect method signatures in your application code that contain components with potentially exploitable security vulnerabilities. Policy violations occurring due to these vulnerable components are labeled as Reachable and can be viewed on the application report.

By including additional parameters in the pipeline tasks you can enable the Reachability Analysis feature. The scan process will then analyze all application and dependency Java (or any JVM language) binaries located in the scan target. This allows you to detect reachable vulnerabilities, even in proprietary components within your application.

Permissions Required

Sonatype for Azure DevOps users should have the Evaluate Applications permissions to scan applications with Reachability Analysis.

Using Java Reachability Analysis

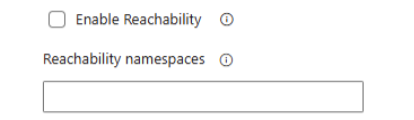

Both the Sonatype Evaluate task and the Sonatype for Azure DevOps task expose two parameters to enable Java Reachability Analysis:


Enable Reachability: Enable Reachability Analysis in Java or JVM language binaries to determine the method signatures that trigger a security vulnerability.

Reachability namespaces: Limit Reachability Analysis to one or more namespaces for faster, more precise results. To specify multiple namespaces, repeat the parameter, e.g., com.package1 org.package2.

The same parameters can be used in a scripted pipeline, as in the example below:

- task: SonatypeEvaluate@2
  inputs:
    # other input parameters could be provided here
    enableReachability: true
    reachabilityNamespaces: 'com.example.library.one com.example.app.two'
    # more input parameters may follow

Entrypoint Strategy

The entrypoint strategy determines which methods are treated as entry points for your application.

The default entrypoint strategy is CONCRETE, which means every non-abstract, non-synthetic method defined in a non-interface, non-annotation class is considered a potential entry point. Use the Reachability namespaces parameter (described above) to restrict the method set to specific namespaces and improve the overall results.
